BC 9000
Specifications
Length 9m
Beam 3.3m
Engine options
- Twin 250hp to 300hp Outboards
- Diesel inboard sternleg combo
Construction options
- Alloy plate
- Advanced composite construction
Weight (Dry Hull)
- Alloy construction: 4100kg
- Composite construction:2800kg
Configuration options
- Center Cabin
- Full Cabin
COMMERCIAL OPERATIONS NOTES
STRUCTURAL DESIGN STANDARD: ISO 12215-5:2008, DESIGN CATEGORY: A-OCEAN,
DESIGN LIMITATIONS (COMPOSITE BUILD): FULL LOAD 5500KG, 40KTS, HALF LOAD 4500KG, 45KTS NSCV OPERATIONAL CATEGORY: 2C,
LIMIT 12 PASSENGERS/2 CREW, UPRIGHT FLOATION
CAN BE CONFIGURED FOR USE IN NSCV OPERATIONAL CATEGORY: 2B/3B
All BC Tech catamarans feature a unique bow shape that produces an extended waterline length and facilitates a finer entry angle thus giving the vessel handling characteristics typical of much larger vessels.
The unique asymmetric tunnel geometry generates spray at specific points inside the tunnel creating a high-density air/water vapor cushion that the hull then rides on. The result is a significantly dampened ride and reduced full consumption. Full length longitudinal steps give the hull efficient lift and dynamic stability and the catamaran hull configuration gives superior stability in all conditions. Additionally, all BC Tech catamarans feature self-draining decks ensuring superior swamping protection.
All BC Tech catamarans are designed and built to Australian commercial craft standards (NSCV). This means that if you use your boat for private use you know that the structure, stability and floatation of your BC Tech catamaran will keep you and your family safe. If you are a commercial operator you will benefit from the lower towing weight of the advanced composite construction and the increased passenger capacity of the BC Tech cat compared to a similar length monohull.
Configuration Options

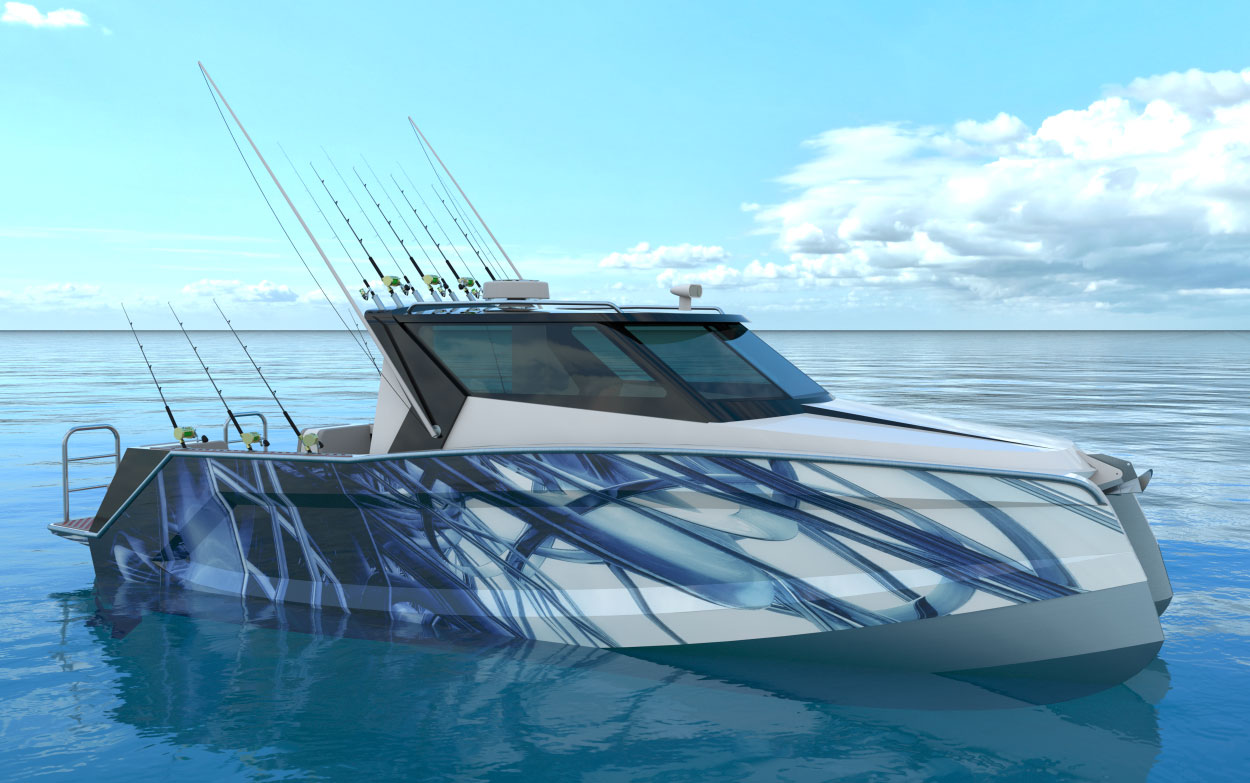

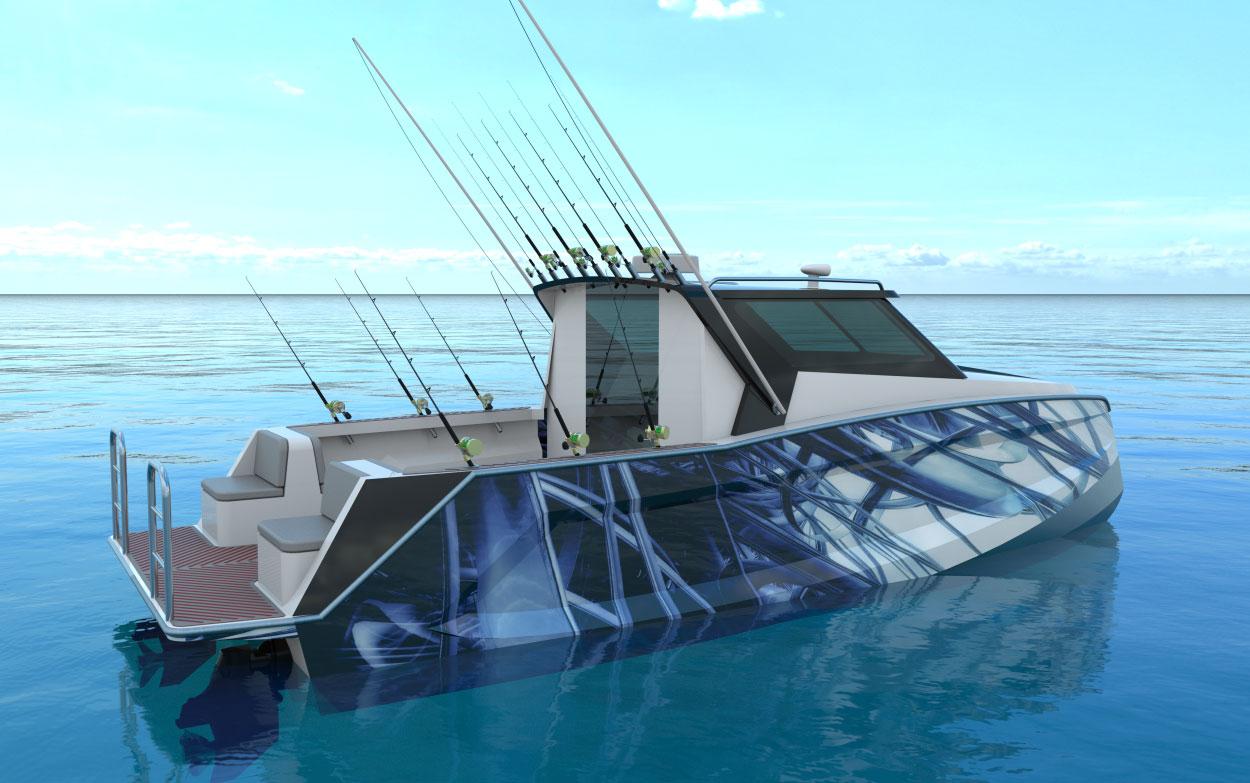

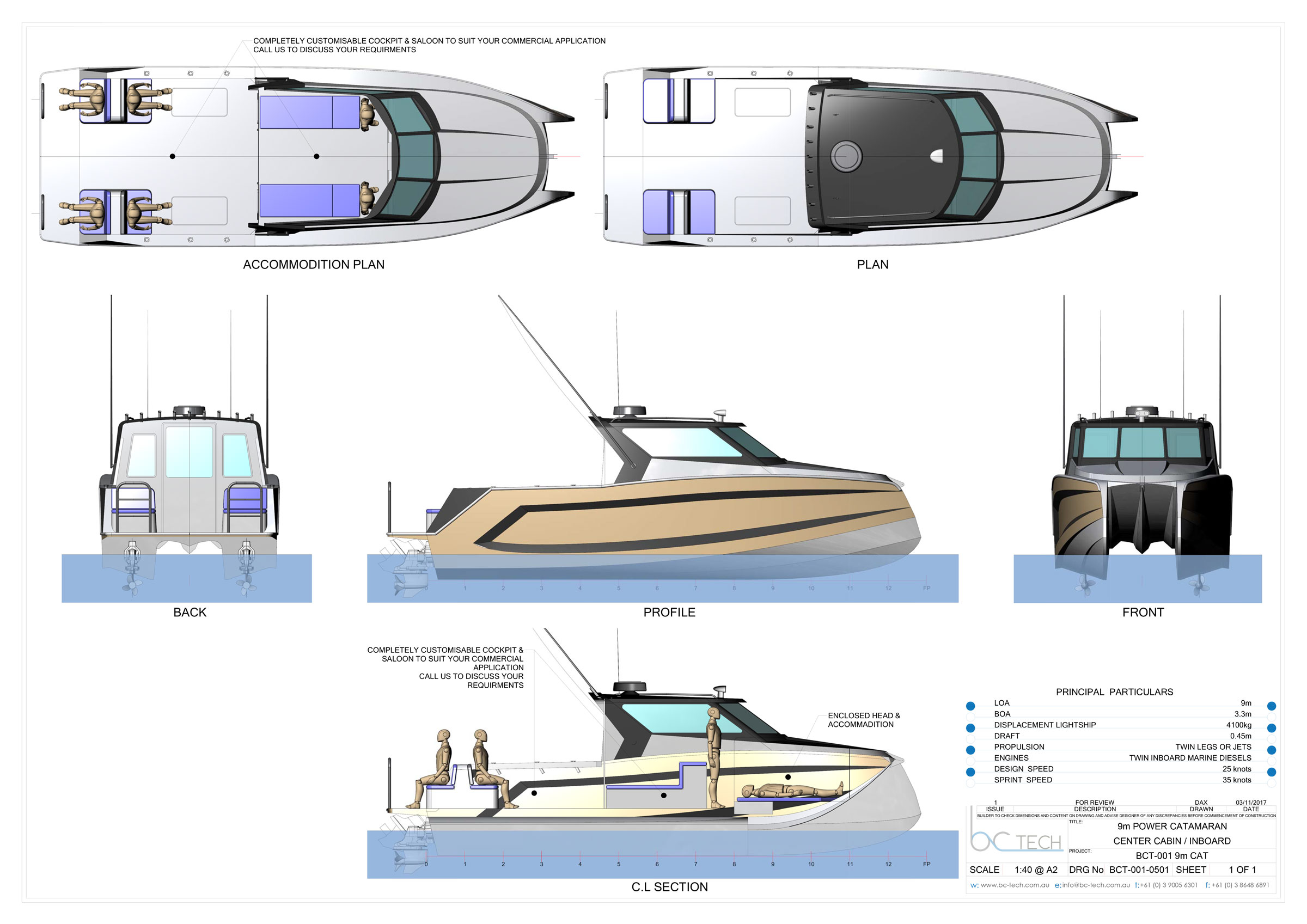

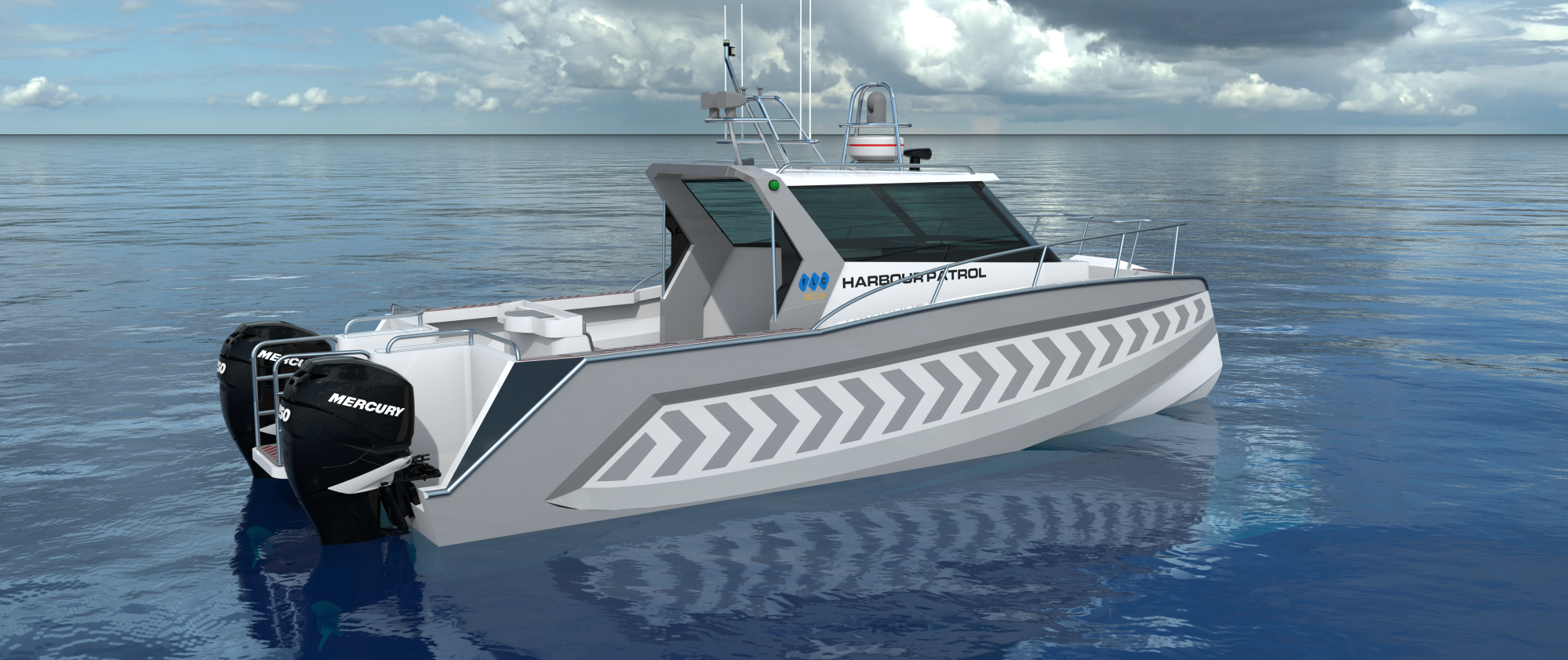

Full Cabin
The 9m has been specifically designed for the commercial market.
Full Cabin configurations can be customised to suit your business requirements.
Contact us to discuss the suitability of our 9m for your business.

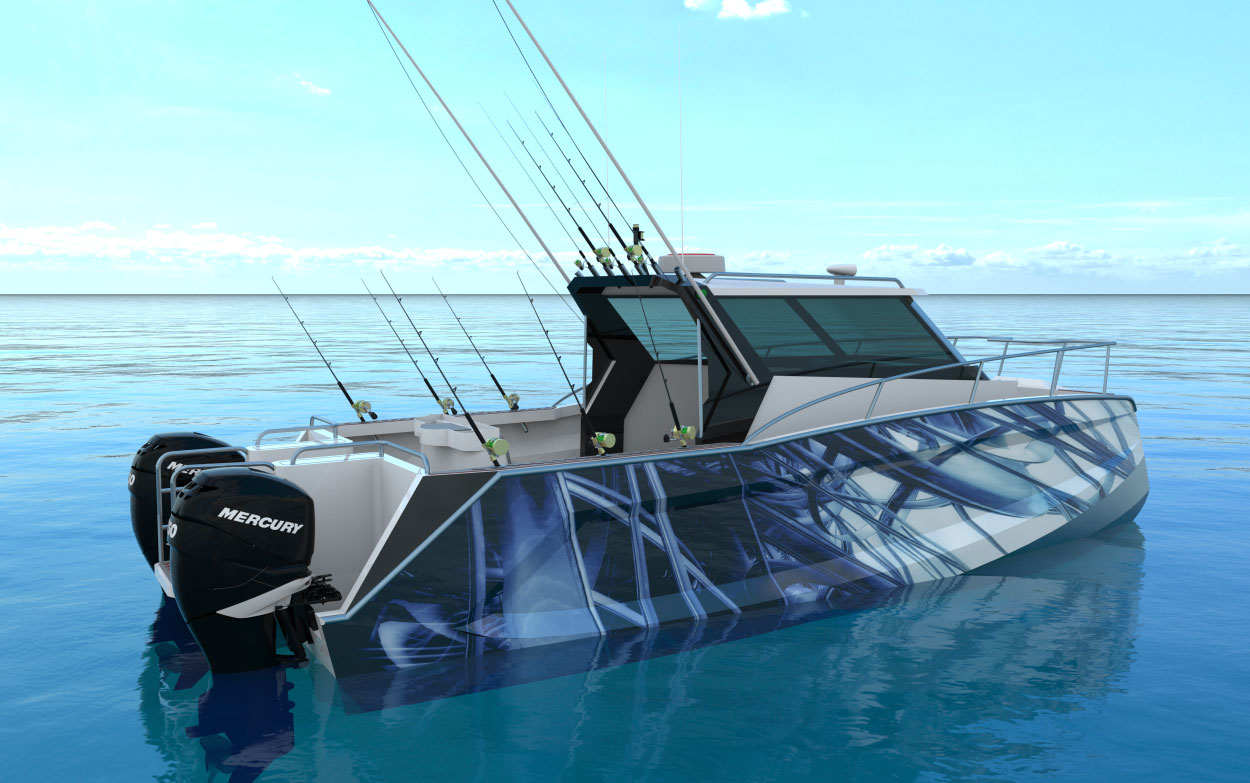

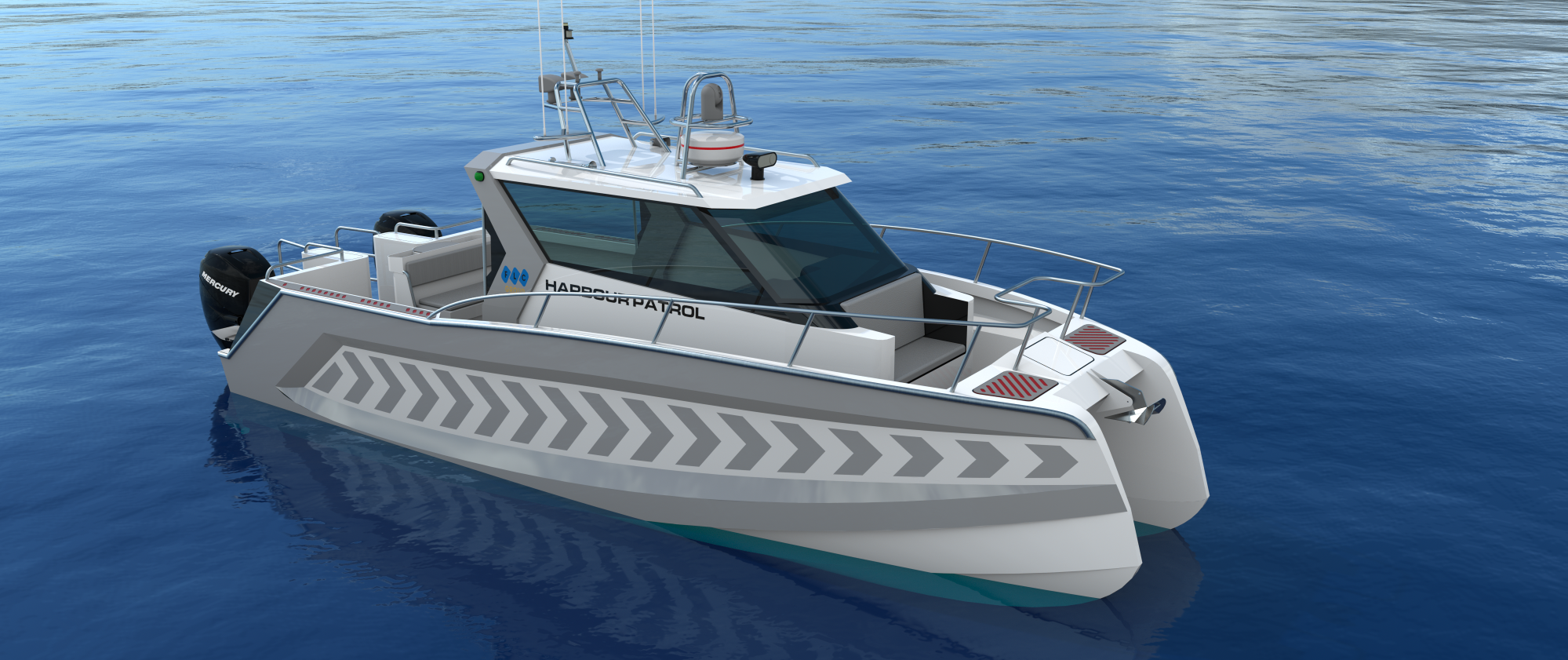

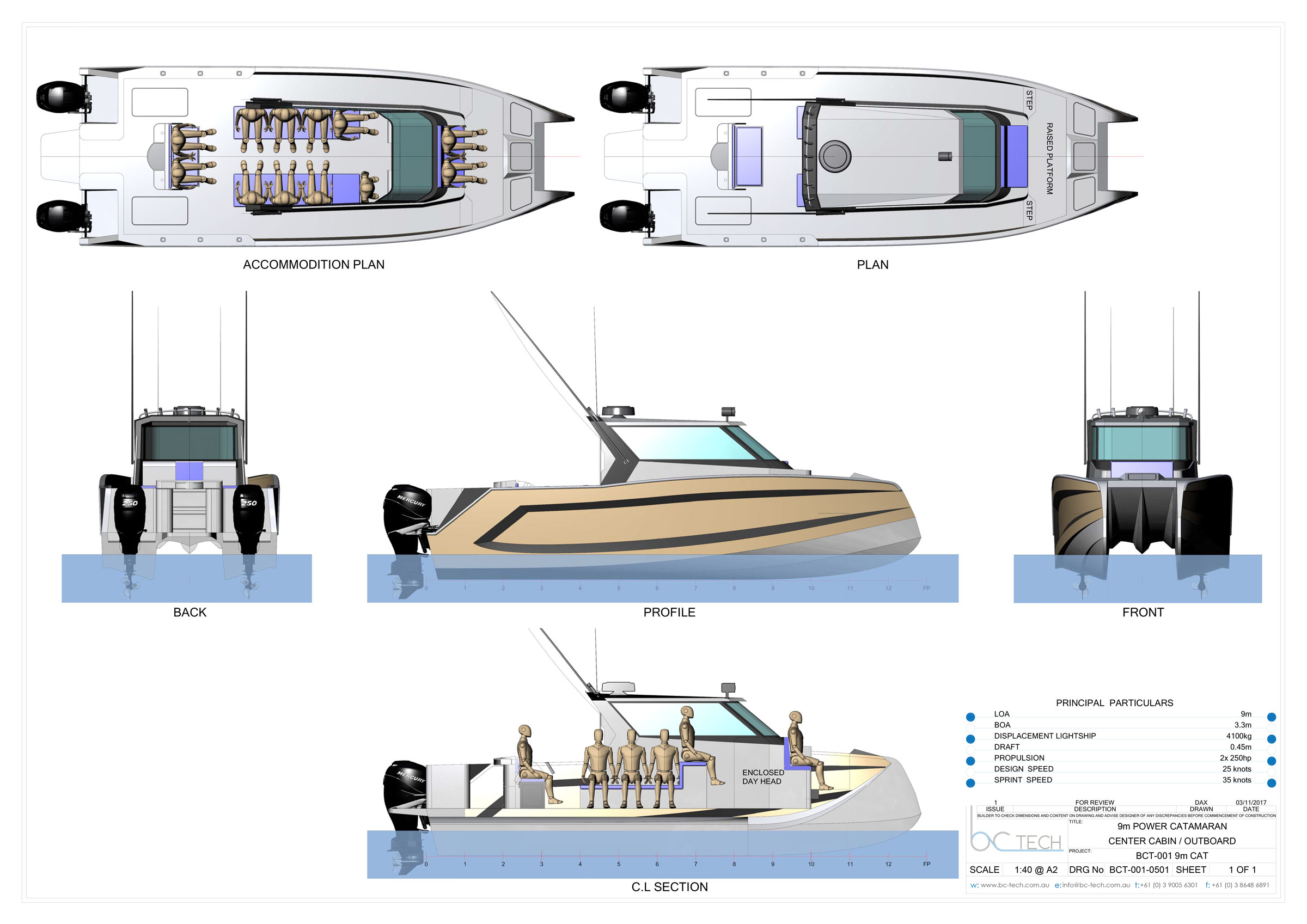

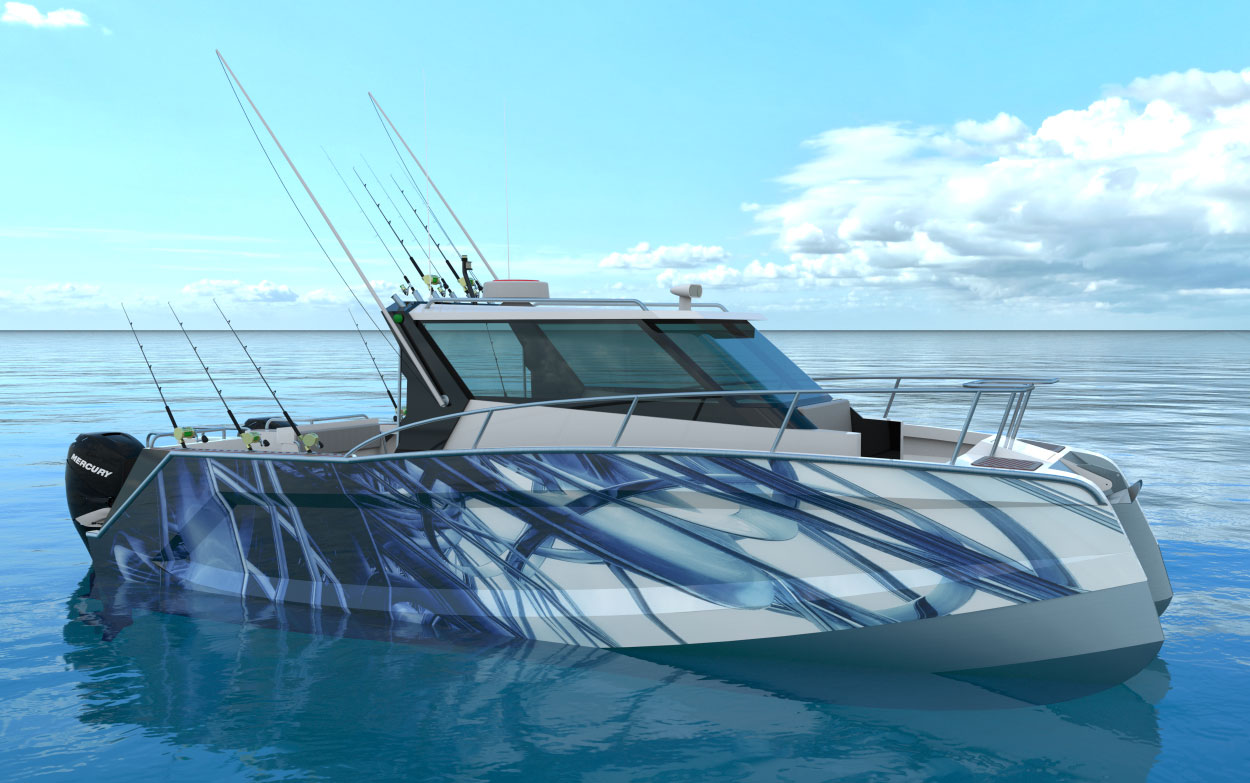

Center Cabin
The 9m has been specifically designed for the commercial market.
Center Cabin configurations can be customised to suit your business requirements.
Contact us to discuss the suitability of our 9m for your business.
